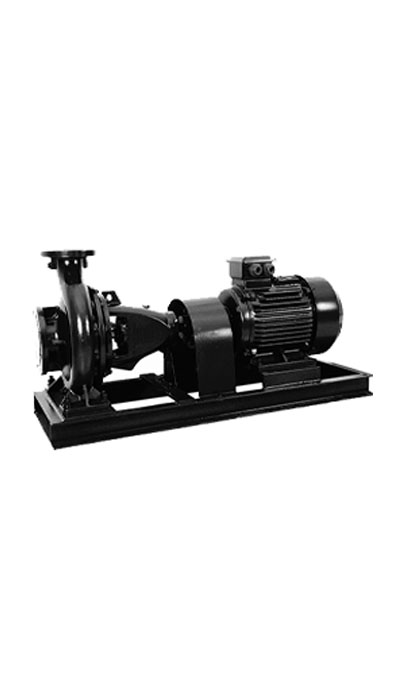

ND-End suction pumps

Description

The ND – pumps of Swiss Pump are manufactured according to DIN 24255. They are powered by a standard electric motor. The motor connects with the pump by a hitch. All pumps are equipped with a mechanical shaft seal. Impellers are available in cast iron, bronze or stainless steel. The pump is mounted on a base plate.

 Application

– Pressure boosting
– General industry
– Irrigation
– Water treatment
– H.V.A.C
– Cooling and chillers
– Fire-fighting equipment
– Reverse osmosis
– Swimming pool
– Industrial
– Agricultuer

 Operating Limits

50 Hz
– Capacity: max. 1500m3/h
– Head: max. 150m
– Liquid temperature: -15°C to +105°C

60 Hz
– Capacity: max.1350 m3/h
– Head: max. 150m
– Liquid temperature: -15°C to +105°C
